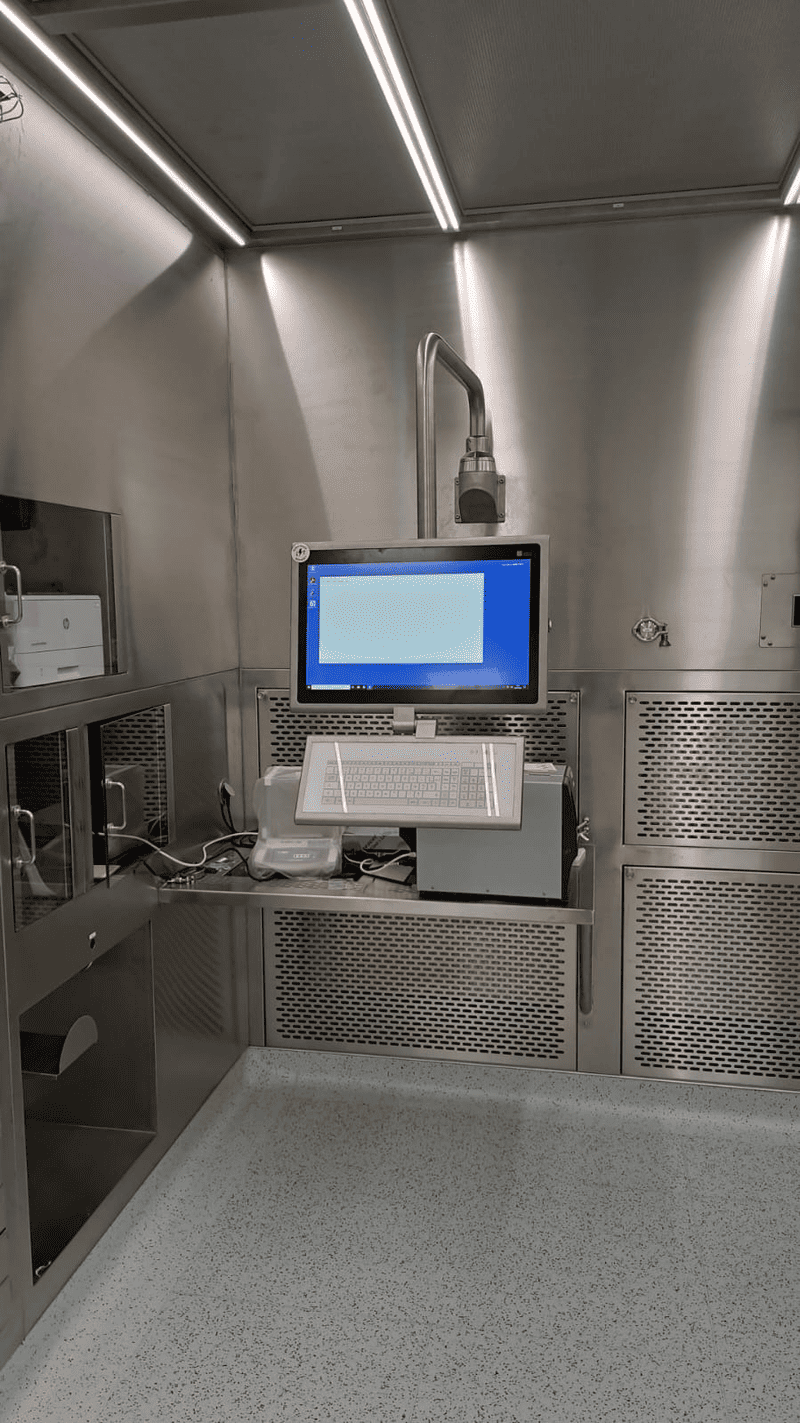

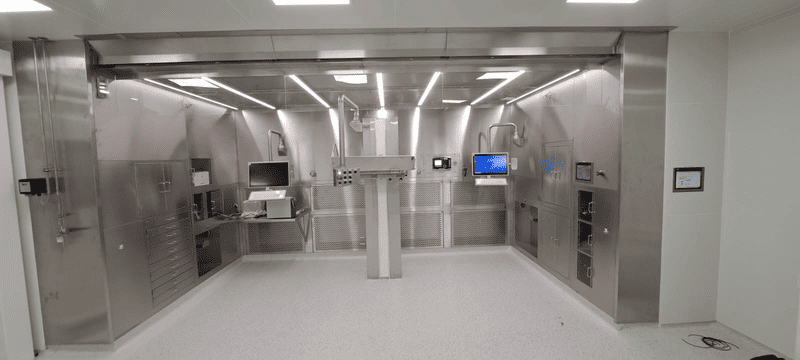

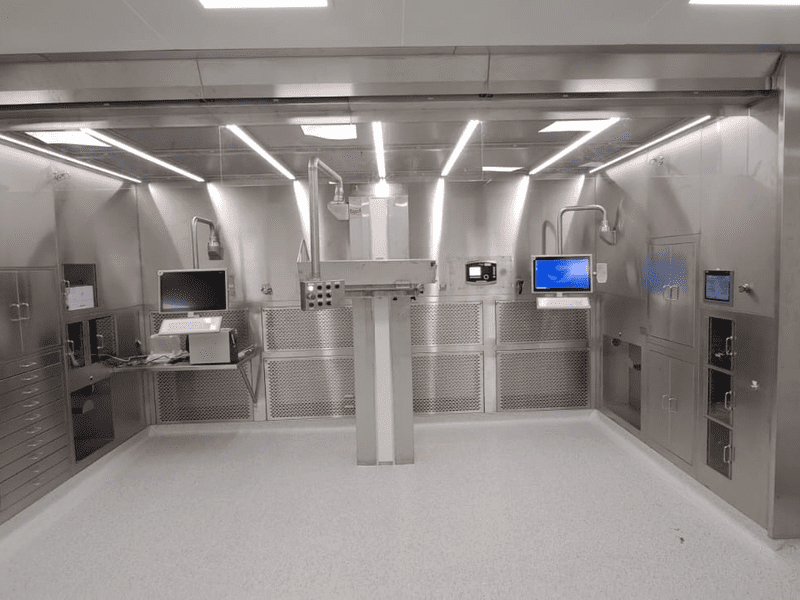

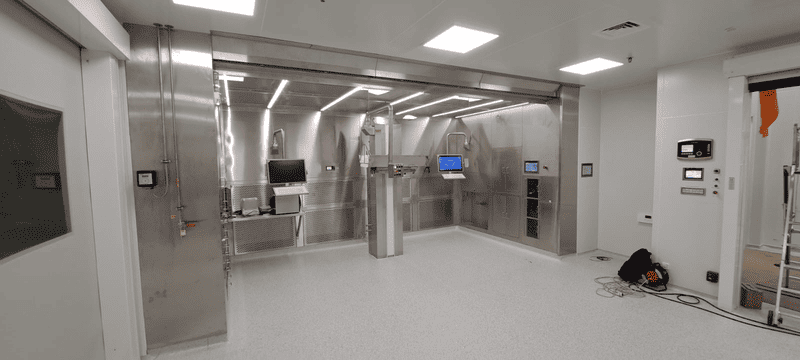

Weighing Cabinet – Weighing Station
Prevents cross-contamination, protects the operator, his handling and the environment, and ensures effective process containment.
Overview
Photos
Features
Options
Control cross-contamination
- Total absence of cross-contamination
- Weighing area control
- Depression
- Temperature (100% recycled)
- Flush integration
- Suspended or floor mounting
- Total modularity (niche, screen, scales, etc.)
- HMI automation
- Maintenance access to be defined (BIBO access)
Customised Technical Solution
Static and Dynamic Protection
Quick Installation and Implementation
Easy-to-clean Surface
Features
- Unidirectional (laminar) vertical flow,
- Total absence of cross-contamination,
- Weighing area regulation:
- Vacuum: 85% of the air is recycled / 15% of the air is rejected
- Temperature (100% recycled)
- Filtration :
- Supply: HEPA H14
- Return air :
- Single or double stage
- G4 / G5 / M6 / F7 / F8 / F9
- Flush integration,
- Suspended or floor-mounted,
- HMI (Human Machine Interface) touch-screen automation,
- Materials: 100% stainless steel,
- Integration: Cooling coil/Ventilation/Sound trap,
- Dynamic containment.
Options
Would You Like an Offer for Your Project?
Do not hesitate to contact us for a personalized quote.
