Our Isolation & Containment solutions

•  Class A (Iso 5)
• Tightness class 1 & 2
• OEB 5 – 6
• Regulation :
  • Temperature
  • Pressure
  • Humidity
• Double HEPA filtration
• Dynamic containment
• OEM Integration
• Audit Trail
• Supervision
• Batch report
• Customization…

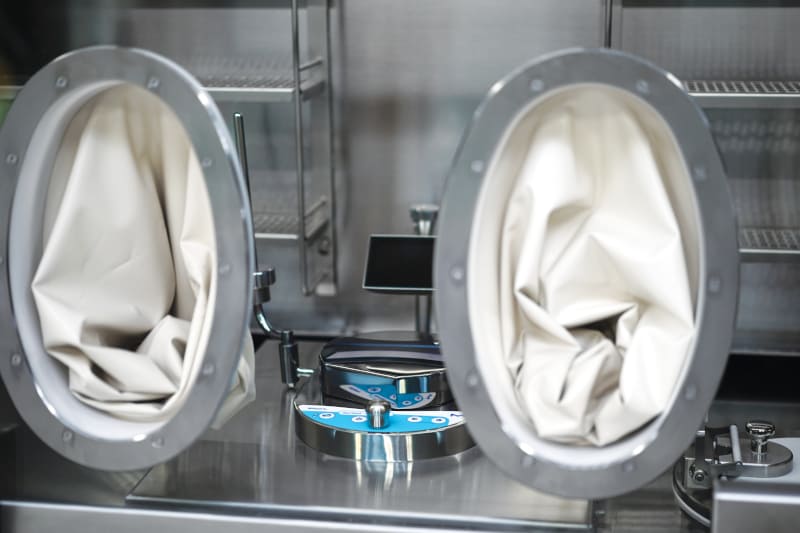

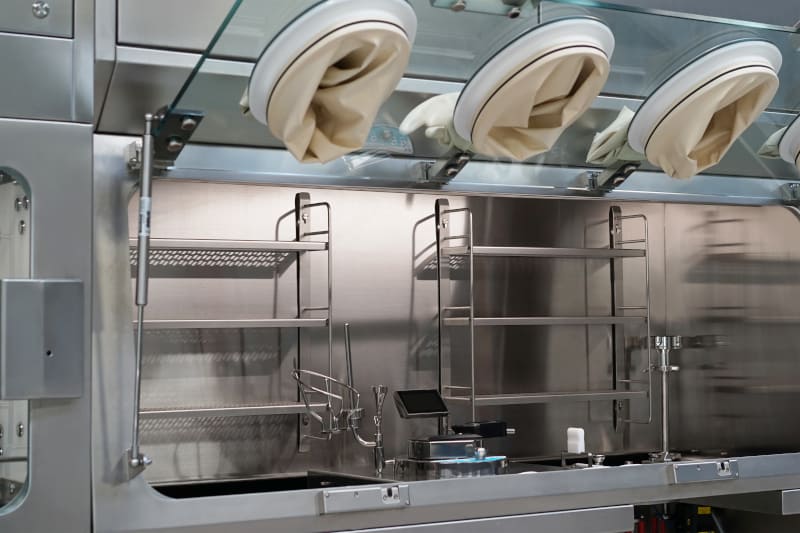

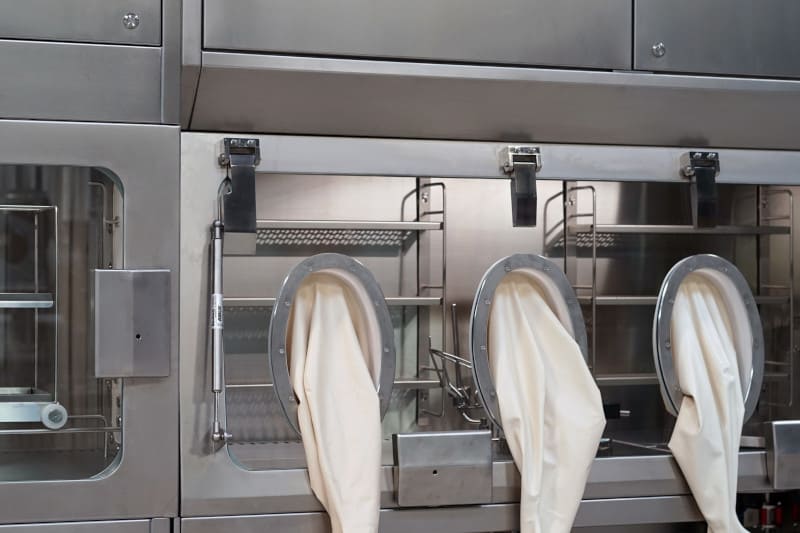

Isolator:

• Air intake through a double glass window allowing space saving under the base plate. The windows are seperable from each other ensuring an optimal cleaning.
• Effective and quick bio-decontamination systems with our partners: STERIS and SOLIDFOG.

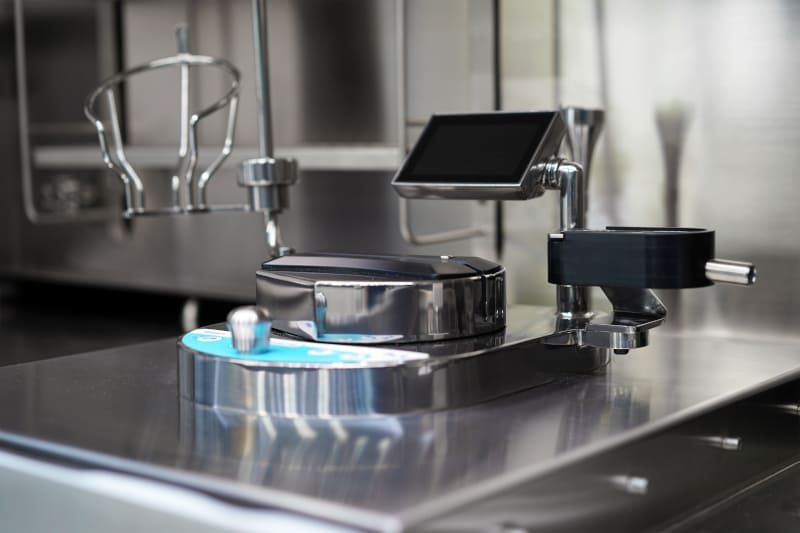

Filling Station:

• Different filling systems depending on the liquid, expected precision and viscosity (peristaltic pump, piston pump, others…), accuracy and repeatability targeted: < 1%,

• 100% control of volumes by weighing (IPC 100%), automated rejection,

• Vacuum or neutral gas filling is possible

• Class A (Iso 5)
• Sealing class 2
• Regulation :
  • Temperature
  • Overpressure
  • Humidity
• Dynamic containment
• Interlocking
• OEM Integration :
  • Bio-decontamination
  • Aerobiocollector
  • Particle counter
• Supervision
• Batch report
• Audit Trail
• HMI / Panel PC
• Customization…

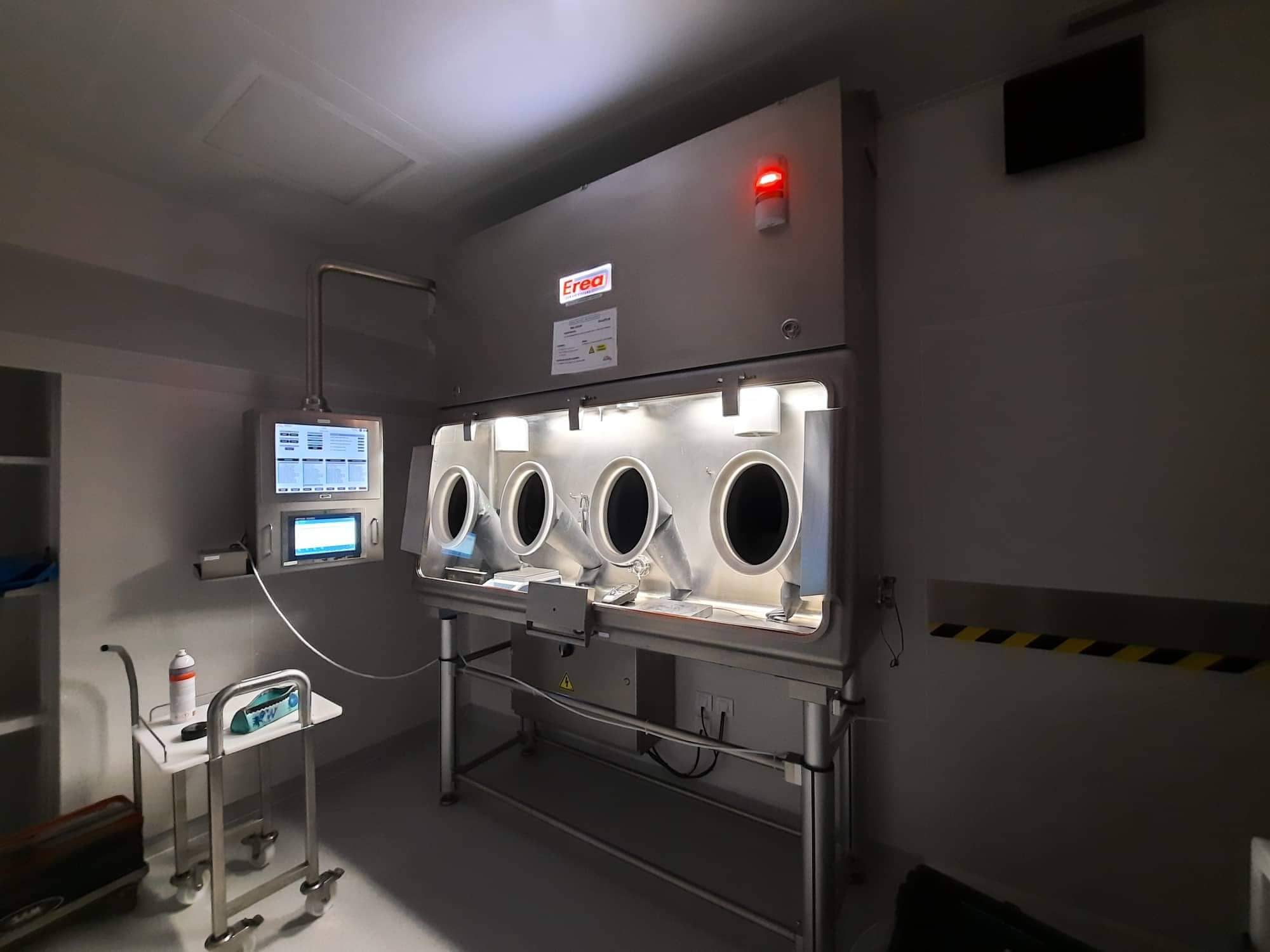

• Turbulent
• Tightness class 1 & 2
• OEB 5 – 6
• Regulation :
  • Temperature
  • Negative pressure
  • HR
• Double HEPA filtration
• Dynamic containment
• Class A (Iso 5)
• OEM Integration :
  • Particle counter
  • Ionization device
• Interlocking
• Supervision
• Batch report
• Audit Trail
• HMI / Panel PC
• Customization…

• Wallthrough feedings
• Adjustable height frame
• Single or double faced
• Number of workstations
• White, RGB & Dimmable LED lighting

• Open or Closed
• Active or Passive
• 100% Customizable
• 1:1 Mock-up at site
• Security and Information loop
• Automation on HMI or Panel PC

•  Class A routing

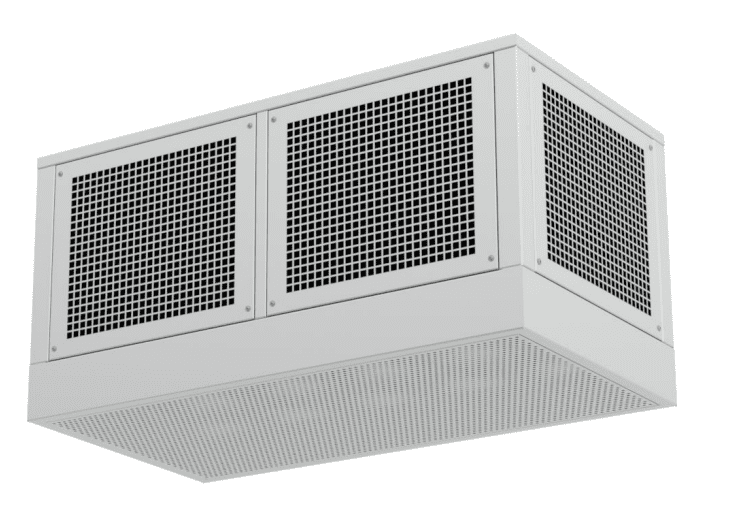

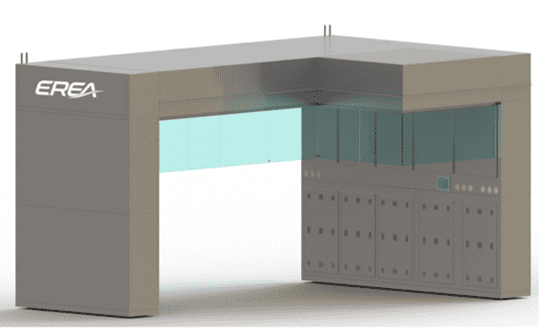

• Horizontal Laminar Flow
• Autonomous power supply by battery pack
• Autonomous cooling by heat exchanger

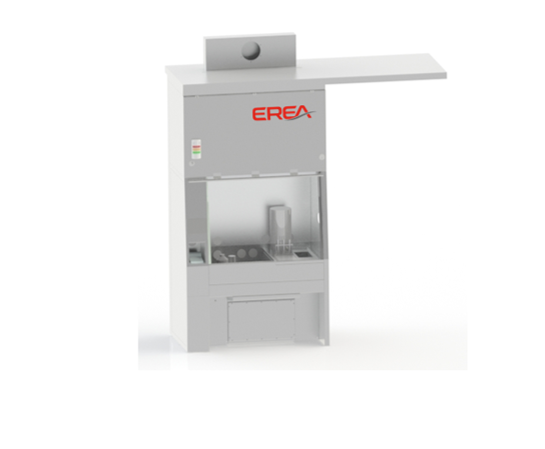

• Class II (EN12469)
• Laminar Flow
• Air barrier and exhaust ducts
• Inclined motorized front panel
• Cytotoxic possibility (CMR)

•  Total absence of cross-contamination

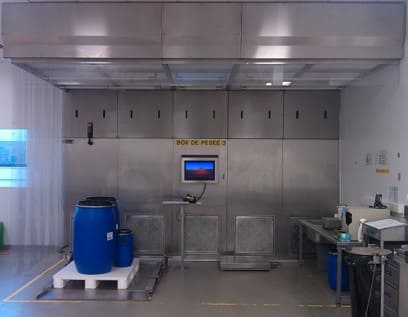

• Regulation on weighing area
  • Negative pressure
  • Temperature (in 100% recycled)
• Flush integration
• Hanging structure or feet assembl
• Total Modularity (niche, screen, scales, commodity, etc.)
• Automation by HMI
• Maintenance access to be determined (BIBO, front or back access, etc…)

•  Protection by Piston Effect
  • Product / Operator
• Lifetime > 25 years
• Standard 316L stainless steel
• Mobile or fixed
• Hanging structure or on feet
• Flush integration

•  Protection by piston effect
  • Operator / Environment / Product
• Laminar flow and exhaust ducts
• Feeding chain on motorized rollers and rotary table
• HMI control of the line
